Guangzhi’s viscous liquid filler handles 500,000 cP materials at ±0.2% accuracy. ATEX-certified, 85% labor reduction & near-zero waste. Request safety datasheet!
*High-Precision Packaging for Paints, Epoxies & Hazardous Chemicals (10–25kg Containers)*

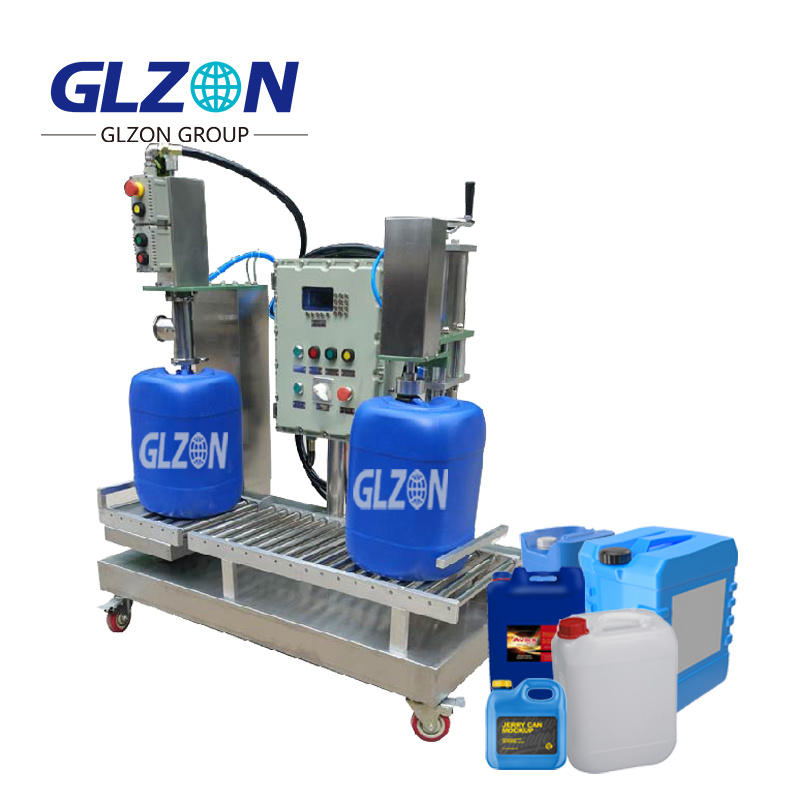

Shanghai Guangzhi Automation’s GZ-VFS1000 Series redefines reliability in filling ultra-viscous (up to 500,000 cP) and reactive materials into pails, drums, or jerrycans. This ATEX/CE-certified system achieves ±0.2% weight accuracy at 18 containers/hour through patented pressure-compensated gravimetric technology, eliminating spills, reducing labor by 85%, and ensuring OSHA/REACH compliance for solvents, two-part epoxies, and pigment-rich paints.
Intelligent Viscosity Adaptation
Shear-Force Compensation: Servo-driven progressive cavity pumps auto-adjust for shear-thinning/thickening behavior (e.g., epoxies, silicone gels).
Heated Path (40–80°C): Maintains optimal viscosity for filled materials; PTFE-lined hoses prevent curing.
Hazard-Safe Operation
ATEX Zone 1/21: Explosion-proof load cells/IP66 motors for flammable solvents (flash point ≤23°C).
StaticDissipate? System: Conductive nozzles (<10? Ω) + grounded clamps prevent ignition.
Zero-Waste Architecture
Drip-Free Cutoff: Vacuum suck-back + scraper seals reduce residue to <0.05%.
Overfill Safeguard: Auto-stop if deviation exceeds ±0.5%.
Automated Container Handling
Robotic Pail Positioning: Laser-guided alignment for ?300–450mm containers.
IoT Performance Monitoring: Real-time OEE tracking via 15" HMI.
| Parameter | Specification |
|---|---|
| Model | GZ-VFS1000-Pro |
| Capacity | 10–25 kg (customizable to 30 kg) |
| Accuracy | ±0.2% (gravimetric) |
| Viscosity Range | 5–500,000 cP |
| Filling Pressure | 0–40 bar (epoxy mode: 60 bar) |
| Throughput | 18 containers/hour |
| Material Contact | 316L SS, PTFE, Halar? |
| Power | 380V/50Hz, 8.5 kW |
| Nitrogen Purging | <10 ppm O? (optional) |
| Footprint (L×W×H) | 2500 × 1200 × 2400 mm |
| Compliance | ATEX, CE, ISO 80079, REACH |
| Metric | GZ-VFS1000 System | Manual Process |
|---|---|---|
| Hourly Output | 18 containers | 3–4 containers |
| Labor | 0.5 operators | 3 operators |
| Material Waste | <0.05% | 4–12% |
| Spill Events | 0 | 3–8 daily |
| ROI Period | 6–10 months | N/A |
| Application | Guangzhi Innovation |
|---|---|
| Epoxies/Resins | Dual-component metering (1:1 to 10:1 ratios) |
| Solvent-Based Paints | VOC recovery (>95% efficiency) |
| Acidic Chemicals | Halar?-coated wetted parts (pH 0.5–14 resistant) |
| Lubricating Greases | 60-bar high-pressure piston filling |
APPLICABLE BARREL TYPE
