4 Head Barrel Filling Machine | Automatic Ton Container & Drum Fillers4X Barrel Filling Machine | Ton Container Filling Systems
High-speed automated filling solution for drums and ton containers
Watch our 4X Bareel filling system in action
Product Overview
Our 4 head barrel filling machine is designed for high-volume industrial applications, handling products with viscosity ranging from low to high. The system processes filling volumes from 50L to 1000L with precision up to ±0.2% accuracy. Key configurations include:

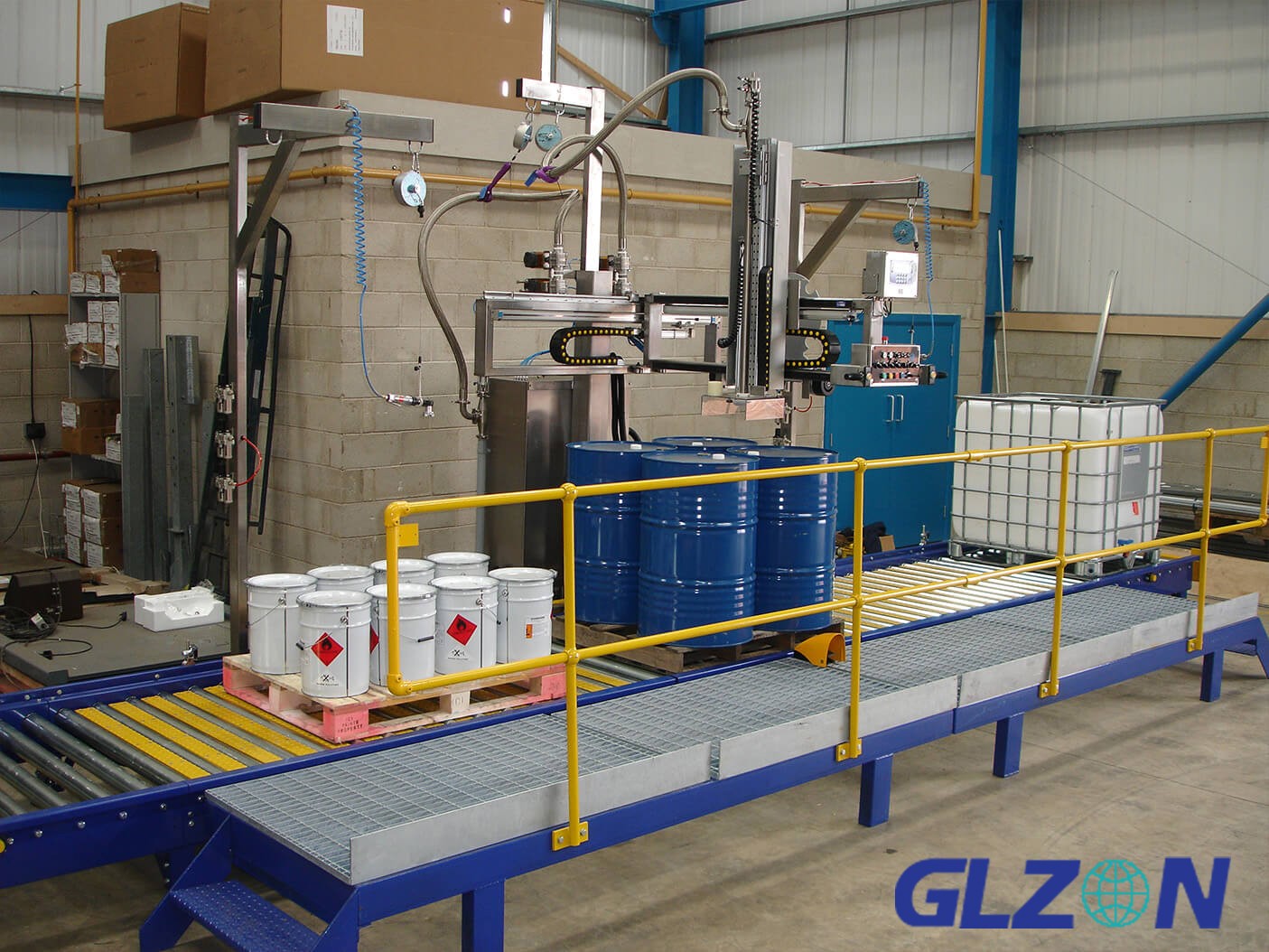

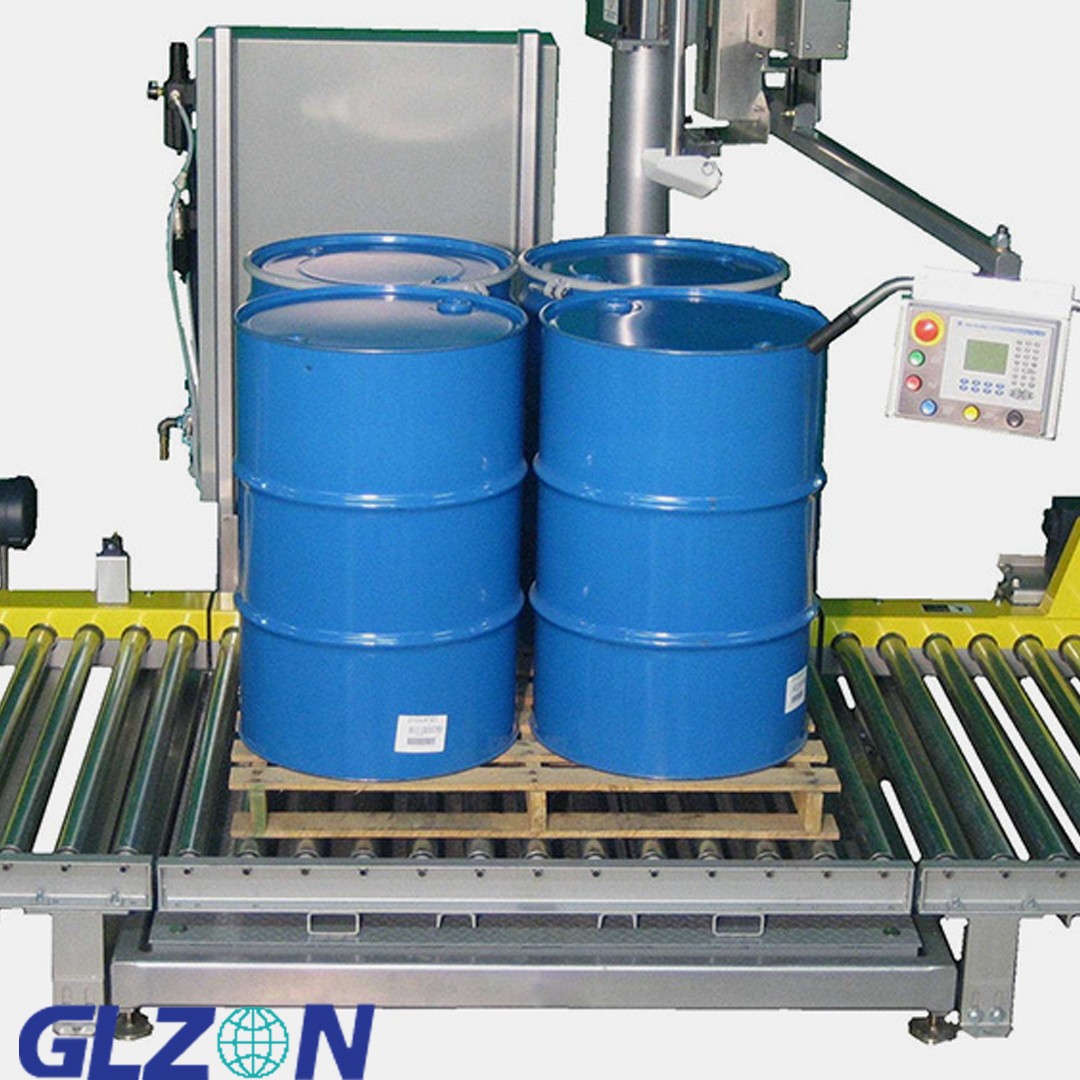

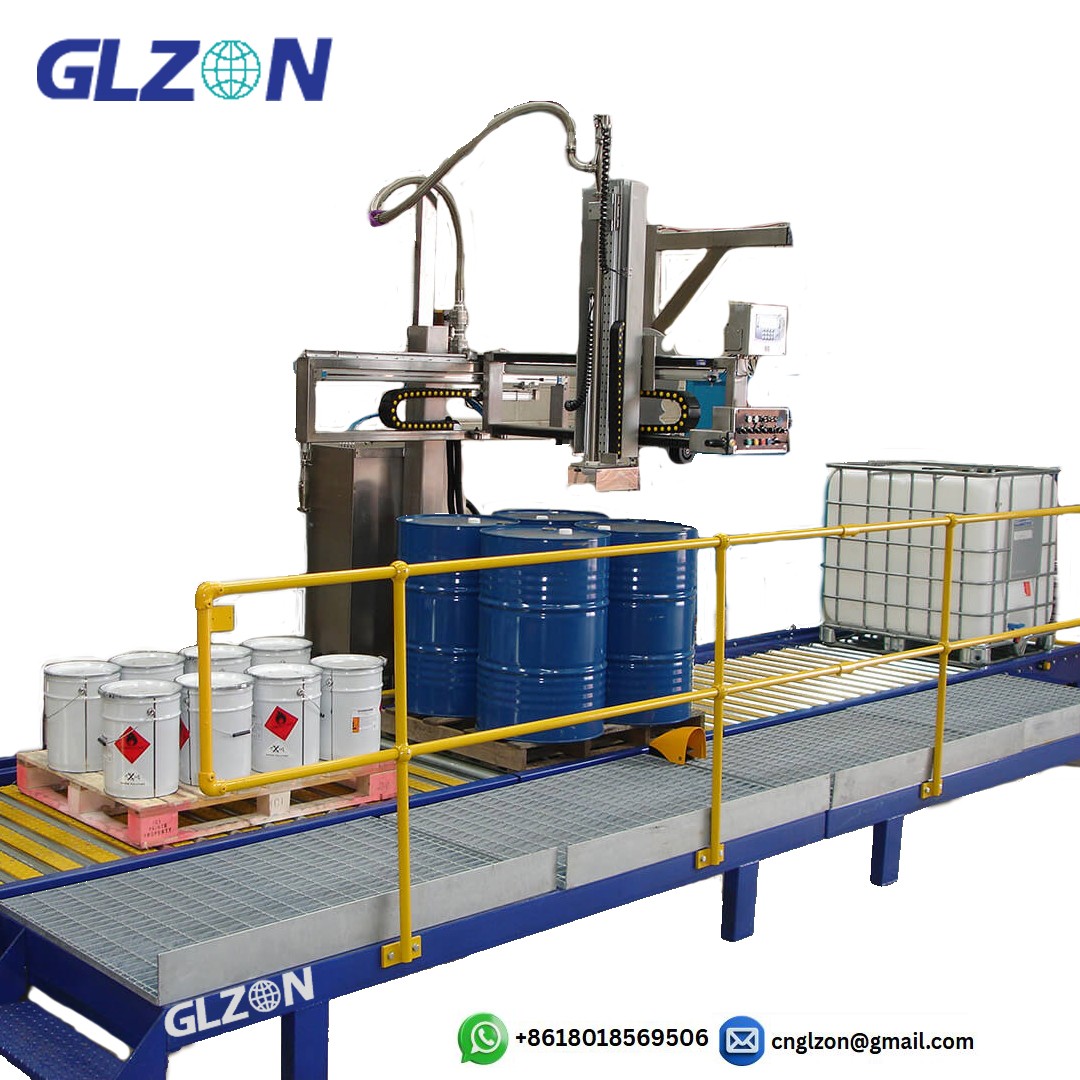

Simultaneous filling of four 200L drums (2×2 arrangement)
Sixteen smaller containers (4×4 arrangement)
Single 1000L ton container filling operation
Convertible between different container types
Key Features

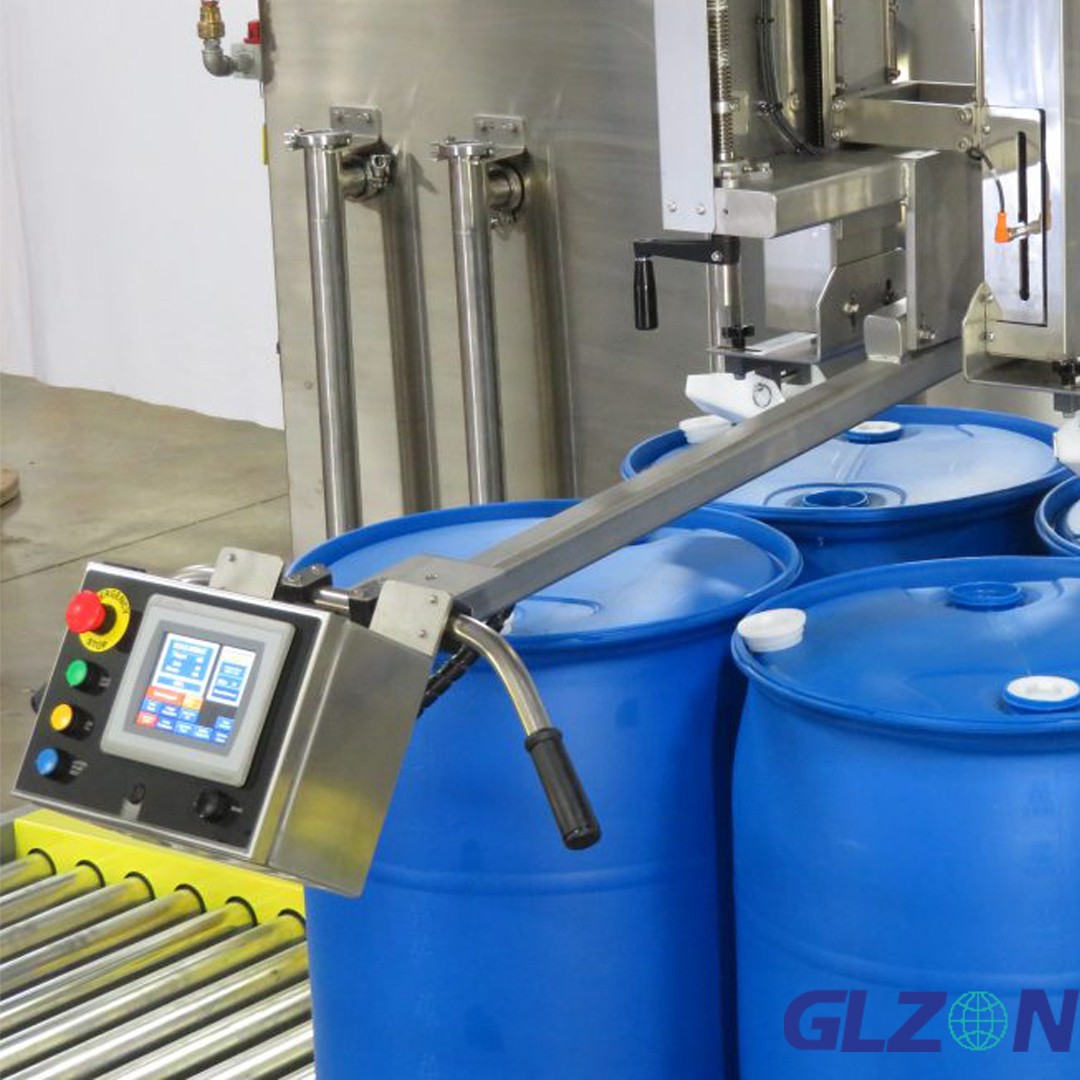

Quad-nozzle design: Simultaneously fills four containers with identical precision
Smart weight control: Integrated load cells for net weight filling accuracy
Automatic nozzle positioning: Self-centering filling heads for perfect alignment
Material options: 316L stainless steel or PTFE contact parts
Explosion-proof: ATEX certified models available
Quick-changeover: Convert between container types in minutes
Technical Specifications
| Parameter | Specification |
|---|
| Model | 4 Head Barrel Filling Machine (QBF-4000) |
| Filling Capacity | 50-1000L per container |
| Throughput | 60-80 drums/hour (200L reference) |
| Accuracy | ±0.2% of set point |
| Power Requirements | 400V/50Hz (3-phase) |
| Air Pressure | 0.5-0.7MPa |
Industry Applications
Our ton barrel filling machine serves demanding industrial sectors:
Chemicals: Solvents, acids, alkalis, and specialty chemicals
Coatings: Paints, varnishes, and industrial coatings
Food Grade: Edible oils, syrups, and food additives
Pharmaceutical: Bulk drug substances and intermediates
Lubricants: Engine oils, greases, and industrial lubricants
Operation Process
Operator positions empty containers on the filling platform
System automatically detects container positions and heights
Nozzles descend and begin simultaneous filling
Real-time weight monitoring for each containe
Automatic cutoff at preset weight with nozzle retraction
Filled containers are conveyed out automatically
Available Configurations
Standard Model: 4-head simultaneous filling
EX Version: Explosion-proof for hazardous areas
Cleanroom Model: For pharmaceutical applications
Heated Version: For high-viscosity products
Need a High-Speed Filling Solution?
Our 4 head barrel filling machine can increase your production efficiency by up to 300%.
