Product Essence: Precision Reorientation for Optimal Stacking

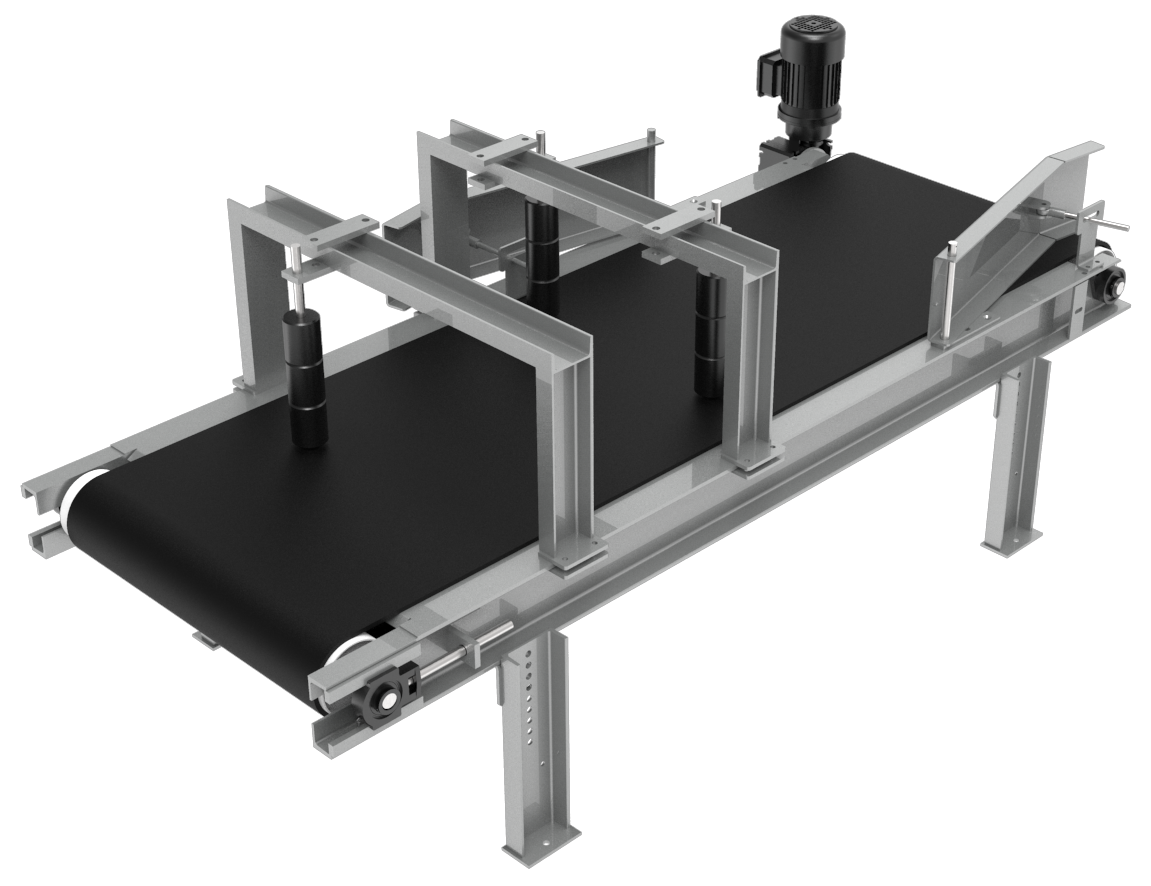

Shanghai Guangzhi Automation’s Bag Turner Conveyors solve end-of-line bag alignment challenges – intelligently rotating 10-50kg sacks (PP/paper/jute) by 90° or 180° at 40 bags/minute. Combining laser-guided positioning, zero-impact flipping, and PLC-controlled motion, this system eliminates manual handling while ensuring perfect pallet matrix formation.

Core Technology Innovations

1. Intelligent Bag Manipulation

• Vision-Guided Rotation: 3D LiDAR scans bag dimensions (±1mm accuracy) before calculating optimal flip trajectory

• Zero-Contact Gripping: Vacuum suction cups + adaptive pressure control (0.2-0.8 bar) prevent surface damage

• Dynamic Speed Matching: Auto-syncs with upstream conveyors (10-30 m/min)

2. Industrial-Grade Durability

• Heavy-Duty Rotation Module:

• Hardox 500 turntable (300,000+ cycles lifespan)

• IP66-rated servo motors (ATEX Zone 22 option)

• Impact Absorption: Hydraulic dampeners reduce G-force to <0.5 during flipping

3. Smart Integration Capabilities

• PLC Communication: Modbus TCP/Profinet sync with palletizers

• Auto Mode Switching:

• 90° for interlock stacking

• 180° for label positioning

• 0° bypass mode

Technical Specifications

Material-Specific Engineering

PP Woven Bags

• Anti-static brushes (surface resistance <10? Ω)

• Non-marking polyurethane rollers

Paper Sacks

• Low-pressure suction cups (≤0.3 bar)

• Dust extraction ports at transfer points

Jute/Burlap

• Barb-resistant gripper plates

• Fiber containment shroud

Operational Intelligence

• 10" HMI Touchscreen:

• Visual bag tracking

• Rotation angle presets

• Error diagnostics (e.g., misaligned bags)

• Predictive Analytics:

• Bearing wear monitoring

• Motor load optimization

• Safety Systems:

• Light curtains at entry/exit

• Emergency reversal function

Case Study: Canadian Fertilizer Plant

Challenge:

• 25kg NPK bags required manual 180° turns for barcode visibility

• 12% bag damage during manual handling
  Solution:

• Bag Turner with vacuum grippers + barcode alignment mode
  Results:
  ? 100% barcode scan success
  ? Zero bag damage
  ? ROI in 6 months

Global Compliance & Value

Certifications:

• CE EN 620:2021 (Continuous Handling Equipment)

• ATEX 2014/34/EU (Zone 22 option)

• ISO 9001:2015

Cost-Saving Features:

• Energy Recovery: Regenerative drives capture 30% braking energy

• Modular Design:

• Bolt-on extension for oversized bags

• Retrofits existing conveyors

Upgrade Ecosystem:

Support & Service

24/7 Global Assistance:

• Remote diagnostics via IIoT gateway

• AR-guided maintenance (Microsoft HoloLens)

Critical Spares:

• Vacuum gripper sets

• Hardox wear plates

• Servo drive units
  Global delivery ≤72h from Shanghai/Houston/Rotterdam hubs
