Dual-lane net weight filling system for simultaneous A/B product processing. Features isolated material paths, ±0.05% gravimetric accuracy, ATEX/FDA compliance, and 120 units/minute throughput.

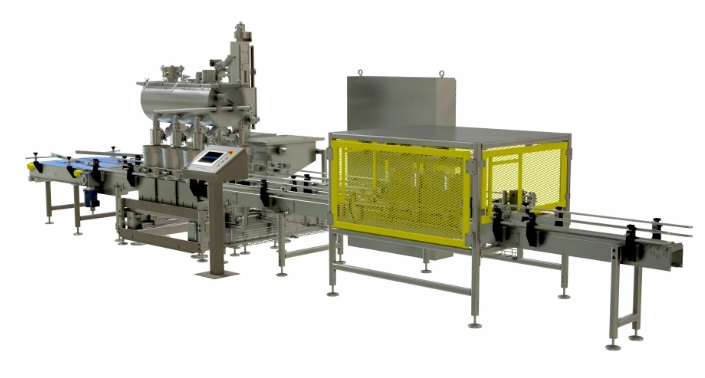

Automatic Net Weight Twin-Lane A-B Filling System
Dual Independent Lines ? 120 Units/Min ? ±0.05% Accuracy ? Zero Cross-Contamination ? Industry 4.0 Integration
| Parameter | TF-8100 (Standard) | TF-8200X (ATEX) | TF-8300P (Pharma-Grade) |
|---|---|---|---|
| Throughput | 120 Units/Min (60/Lane) | 110 Units/Min | 100 Units/Min |
| Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Lane Independence | A-B Dual Control System: ? Separate Recipe Storage ? Isolated Material Paths ? <0.1ppm Cross-Contamination | SIL-3 Certified | cGMP Data Integrity |
| Container Range | 50ml-20L Materials: Glass/HDPE/PET/Metal Lid: Screw Cap ? Press ? Flip-Top | UN-Certified | USP Containers |
| Filling Technology | Dual Coriolis Mass Flow Meters/Lane Flow Rate: 80L/min/Lane Density Accuracy: ±0.01% Lane Sync: <0.03% Variance | ATEX Gear Pumps | Peristaltic Pumps (FDA) |
| Changeover System | AutoSwitch? Technology: ? <30s Formula Change ? Tool-Free Path Purge ? RFID Component ID | Same | VHP Sterilization |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | PFA-Lined Path |
| VOC Containment | TripleShield?: 1. -0.8bar Vacuum Hood 2. N? Blanketing (O?<0.3%) 3. Carbon Adsorption (99.97%) | + Explosion Venting | Ionic Filtration |
| Data Integrity | 21 CFR Part 11 Compliance: ? Blockchain Audit Trail ? E-Signatures ? Real-Time MES Sync | SIL-2 Logging | ALCOA+ Principles |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 14kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 211 |
Performance Validation:
| Parameter | Lane A | Lane B | Variance |
|---|---|---|---|
| Flow Rate | 80.02L/min | 80.05L/min | 0.037% |
| Density Accuracy | ±0.012% | ±0.014% | 0.002% |
| Temp Stability | ±0.15°C | ±0.13°C | 0.02°C |
| Technology | Function | Performance |
|---|---|---|
| Isolated Paths | Double Mechanical Seal | <0.1ppm Carryover |
| Air-Knife Purge | 40bar Inter-Lane Barrier | 100% Decontamination |
| RFID Tracking | Component-Specific Tooling | Zero Formula Mixing |
1. Dual-Lane Container Infeed → 2. Simultaneous A-B Filling (±0.05%) → 3. Vacuum Hood Retract → 4. Torque Capping (0.5-20 N·m) → 5. Weight Verification → 6. Laser Coding → 7. Merge Conveyor
Cycle Time: 0.5 seconds/unit (Per Lane)
Precision & Flexibility
? Dual-Product Capability: | **Feature**| **Benefit**| |-------------------------|--------------------------------| | Independent Recipes | Simultaneous A/B Production | | Instant Changeover| <30s Formula Switch | | Isolated Paths| 0% Cross-Contamination| ? Zero-Downtime Architecture: 1. Hot-Swap Component System 2. Predictive Maintenance AI 3. Redundant Control Systems ? Smart Factory Integration: - OPC UA/PROFINET/MQTT - Digital Twin Synchronization - Energy Recovery (30% Savings)
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR Part 11 ? EHEDG EL Class I
"After implementing TF-8300P:
Output: 50 → 120 Units/Min (+140%)
Changeover Loss: ↓100% (Simultaneous Production)
Cross-Contamination: 0 Incidents (24/7 Operation)
ROI Period: 5 months"
APPLICABLE BARREL TYPE
