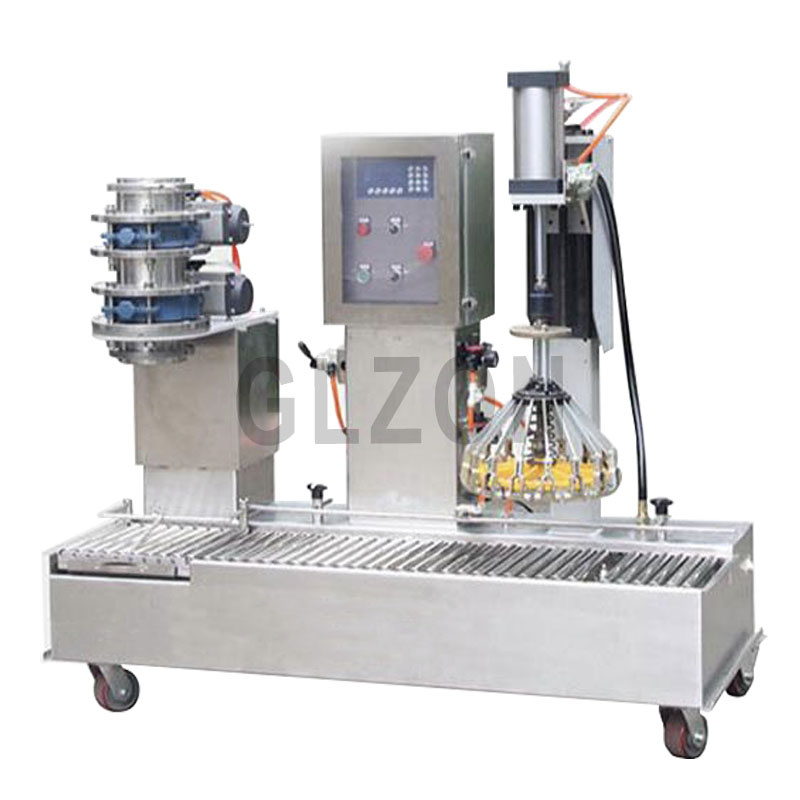

DrumFill Pro DF-3000 Series30L Roller Conveyor Drum Filling SystemIndustrial-Grade Precision for Liquids & Chemicals • 45 Cans/Hr • ±0.1% Accuracy • Zero-Spill • ATEX/FDA/EHEDG Tri-ComplianceCore
30L Roller Conveyor Drum Filling System
Industrial-Grade Precision for Liquids & Chemicals ? 45 Cans/Hr ? ±0.1% Accuracy ? Zero-Spill ? ATEX/FDA/EHEDG Tri-Compliance
| Parameter | DF-3100 (Standard) | DF-3200X (ATEX) | DF-3300F (Food-Grade) |
|---|---|---|---|
| Capacity | 30L (±0.1%) | 30L (±0.15%) | 30L (±0.08%) |
| Throughput | 45 Cans/Hour | 40 Cans/Hour | 38 Cans/Hour |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 1-500,000 cP | 10-300,000 cP | 50-1,000,000 cP |
| Conveyor System | Powered Roller Conveyor<br>? Magnetic Rollers<br>? ±0.5mm Positioning<br>? 6m/min Speed | ATEX Brushless Rollers | Hygienic SS Rollers |
| Filling Technology | Servo Piston + Coriolis Meter | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Nozzle Design | Tungsten Carbide Tip<br>? Vacuum Suction (-0.6bar)<br>? Coanda Adhesion | Spring-Loaded Nozzle | PTFE Scraper System |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Container Handling | 30L Steel/Plastic Drums<br>?: 300-400mm<br>H: 400-600mm | Same + UN Drums | Food-Grade Pails |
| Changeover Time | <60s (Tool-Free) | <75s | <50s |
| Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 4.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 177.2600 |
Performance Metrics:
| Parameter | DF-3000 Performance | Industry Standard |
|---|---|---|
| Positioning Accuracy | ±0.5mm | ±5mm |
| Speed Consistency | ±0.1% Belt Speed | ±2% |
| Container Damage | 0% | 0.5-1.5% |
| Component | Technology | Precision |
|---|---|---|
| Load Cells | Temperature-Compensated Strain Gauges | ±0.05% FS Accuracy |
| Air Buoyancy | Real-Time Atmospheric Compensation | ±0.1% Error |
| Flow Control | Adaptive PID Algorithm | ±0.1% Fill Consistency |
Chemicals & Solvents
| Feature | ATEX Solution | Performance |
|---|---|---|
| Vapor Control | Nitrogen Blanketing (O?<0.5%) | <1ppm VOC Emission |
| Static Dissipation | Ionized Air Curtain (10? ions/cm3) | <0.1kV Surface Charge |
| Corrosion Resistance | Zirconium Alloy Flow Path | 0.001mm/yr Corrosion Rate |
Food & Beverage
Sanitary Design:
Oxygen Barrier:
| Technology | Effect |
|---|---|
| N? Flushing | O?<0.1% Headspace |
| Vacuum Filling | -0.8bar Residual Pressure |
Paints & Coatings
| Challenge | Innovation |
|---|---|
| Splatter Control | Coanda Adhesion Nozzle |
| Color Separation | Low-Shear Paddle Agitator |
| Drip Prevention | Laser-Cut Capillary Break |
1. Manual Drum Loading → 2. Roller Conveyor Alignment (±0.5mm) → 3. Nitrogen Purging (O?<0.5%) → 4. Submerged Filling (±0.1%) → 5. Vacuum Nozzle Retract → 6. Torque-Sealing (30-100 N·m) → 7. Weight Verification → 8. Exit Conveyor
Cycle Time: 80 seconds/can
Precision Engineering
? Roller Conveyor Superiority: | **Feature**| **Performance**| |-------------------------|------------------------| | Positioning Accuracy | ±0.5mm | | Belt Speed| 0-10m/min Adjustable | | Container Damage| 0% | ? Zero-Spill Technology: 1. Vacuum Suction (-0.6bar) 2. Coanda Adhesion Surface 3. Capillary Break Valve ? Industrial Durability: - Tungsten Carbide Components (2,200 Hv) - IP66 Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 2 ? FDA 21 CFR 177.2600 ? EHEDG EL Class I ? ISO 9001:2015
BASF Chemical Packaging Line:
"After implementing DF-3200X:
Output: 25 → 45 Cans/Hour (+80%)
Spill Reduction: 1.5L/shift → 0.05L/shift
Accuracy: ±0.8% → ±0.09%
ROI Period: 6.2 months"
APPLICABLE BARREL TYPE
