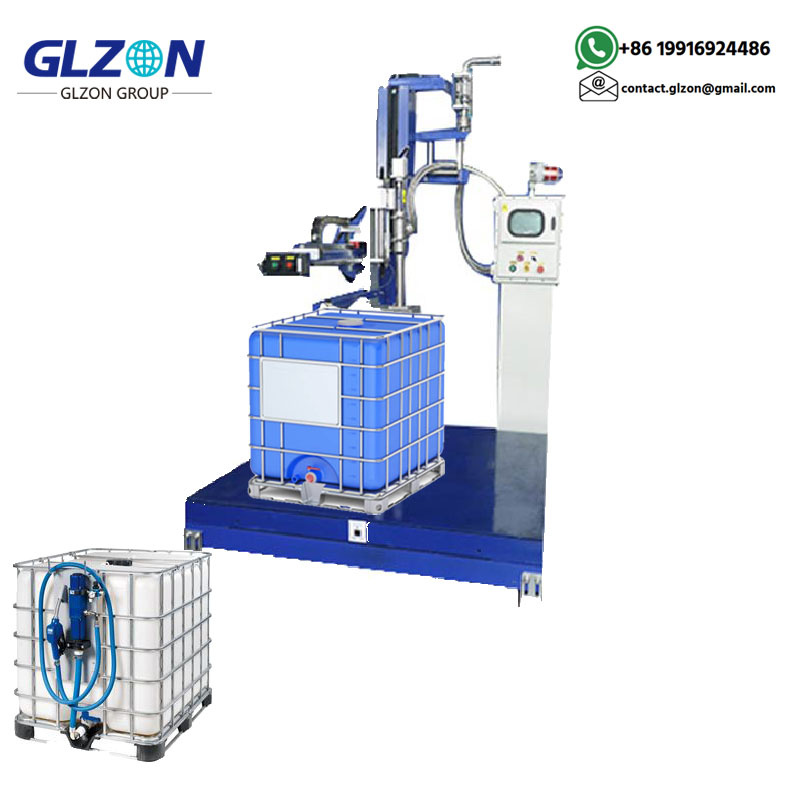

IBC Titan Filler TF-10000 SeriesCustomizable Stainless Steel IBC Filling System100-1000L Capacity • ±0.1% Accuracy • ATEX/Pharma/Food Tri-Compliance • Industry 4.0 IntegrationCore Engineering Innovati
Customizable Stainless Steel IBC Filling System
100-1000L Capacity ? ±0.1% Accuracy ? ATEX/Pharma/Food Tri-Compliance ? Industry 4.0 Integration
Performance Validation:
| Capacity | Filling Time | Accuracy | Residual |
|---|---|---|---|
| 100L | 45s | ±0.08% | <0.05L |
| 500L | 2.5min | ±0.12% | <0.15L |
| 1000L | 4.8min | ±0.15% | <0.3L |
| Layer | Technology | Performance |
|---|---|---|
| Primary Seal | Inflatable Silicone Collar | <0.1mg/m3 Vapor Leak |
| Secondary Barrier | HEPA H14 Filtration (99.97%@0.3μm) | ISO Class 5 Air Quality |
| Tertiary Defense | -50Pa Vacuum Hood | 100% Splash Containment |
| Parameter | TF-1010 (Standard) | TF-1020X (ATEX) | TF-1030P (Pharma) |
|---|---|---|---|
| Capacity Range | 100-1000L (±0.1%) | 100-1000L (±0.15%) | 100-1000L (±0.08%) |
| Flow Rate | 200L/min | 180L/min | 150L/min |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Material Compatibility | Chemicals ? Food ? Pharma ? Petrochemicals | Explosive Liquids | USP Class VI Fluids |
| Filling Technology | Adaptive System:<br>? Servo Piston (1-500,000 cP)<br>? Impeller (50-1M cP) | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Material Contact | 316L/304 SS (Ra<0.4μm) | Hastelloy C276 | 316L EP (Ra<0.2μm) |
| Containment | TripleGuard? System | + Nitrogen Inerting | + SIP/CIP Sterilization |
| IBC Compatibility | Standard/Stackable Totes ? Composite Containers ? UN-Certified | Same | Same + Aseptic Liners |
| Positioning Accuracy | ±1mm (Laser Guided) | ±1.5mm | ±0.8mm |
| Changeover Time | <3min (Tool-Free) | <3.5min | <2.5min |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 15kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1/21 | FDA 21 CFR 210/211 |
| Component | Options | Performance Impact |
|---|---|---|
| Filling Head | Piston ? Impeller ? Gear Pump | Viscosity Range: 1-1,000,000 cP |
| Filtration | Bag ? Cartridge ? HEPA H14 | Particle Removal: 0.1-100μm |
| Control System | Siemens PLC ? IoT Edge ? OPC UA | Data Integration Level |
| CIP System | Single-Tank ? Multi-Circuit | Cleaning Time: 15-45min |
| Safety | SIL-2 ? ATEX Zone 0 ? IP69K | Compliance Level |
Chemical Processing
| Feature | ATEX Solution | Certification |
|---|---|---|
| Vapor Control | Nitrogen Blanketing (O?<0.3%) | IECEx IEC 60079-10-1 |
| Corrosion Resistance | Zirconium Lined Path | NACE MR0175 |
| Static Dissipation | Conductive Floor + Wrist Straps | NFPA 77 |
Food & Beverage
Sanitary Design:
Preservation Tech:
| System | Function |
|---|---|
| Deaerator | O?<0.1ppm |
| UV-C Sterilization | 6-log Pathogen Reduction |
Pharmaceuticals
| Component | cGMP Compliance |
|---|---|
| Cleanability | SIP Validation (121°C/30min) |
| Data Integrity | 21 CFR Part 11 + Blockchain |
| Material Safety | USP <797> Certification |
**15" AI HMI with TitanOS?**
Industry 4.0 Features:
Anomaly Detection:
| Parameter | Action |
|---|---|
| Density Shift >1% | Flow Recalibration |
| Temp Variance >2°C | Path Heating Adjustment |
OEE Optimization:
| Metric | Real-Time Control |
|---|---|
| Energy Consumption | 0.1kWh/L Adaptive |
| Seal Wear | >500 Cycles Alert |
| Subsystem | TF-1030P Pharma Grade | TF-1020X ATEX |
|---|---|---|
| Surface Finish | Ra<0.2μm Electropolished | 220 Grit Blasted |
| Seal Material | Platinum-Cured Silicone | Kalrez?6375 |
| Filtration | 0.2μm Sterile Air Filter | Explosion-Proof Vent |
| Connectivity | OPC UA + MQTT | PROFIBUS PA |
? ATEX 2014/34/EU Zone 1/21 ? FDA 21 CFR 210/211 ? EHEDG EL Class I ? ISO 9001:2015 ? ASME BPE-2022 (TF-1030P)
Global Chemical Supplier:
"After deploying TF-1020X for 500L solvent totes:
Output: 15 → 28 Totes/Hour (+87%)
VOC Emissions: ↓98% (Carbon Adsorption)
Accuracy: ±0.8% → ±0.12%
ROI Period: 9 months"
