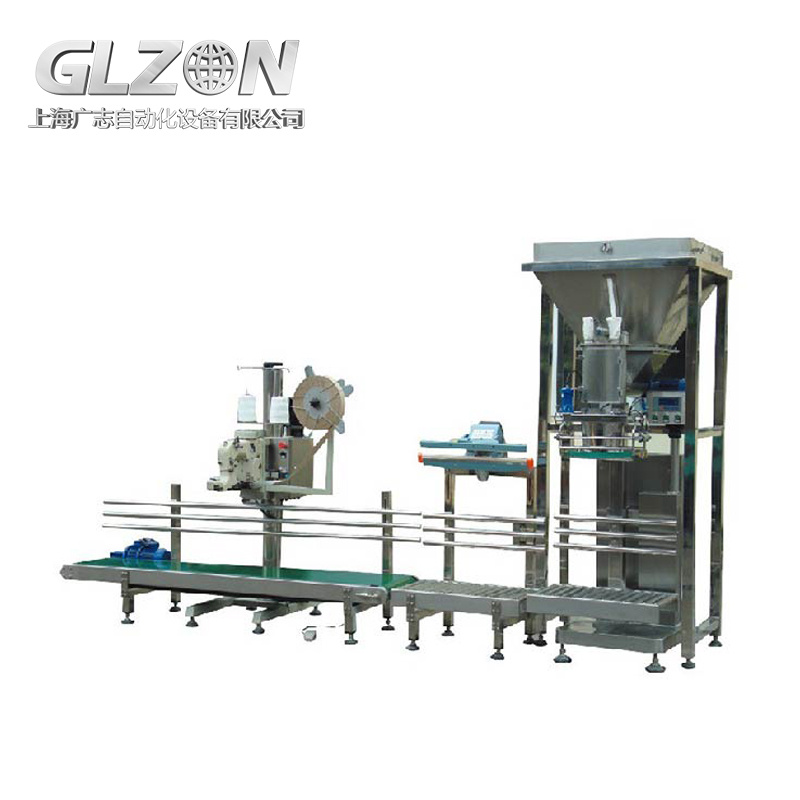

BagPro TS-20000 SeriesIndustrial Open-Top Bag Filling & Sealing SystemPrecision Automation for Bulk Solids - From Grains to GranulesCore Technology Innovations1. TripleSeal™ Contamination Control*
Industrial Open-Top Bag Filling & Sealing System
Precision Automation for Bulk Solids - From Grains to Granules
Validated Performance:
Dust Emission: <1mg/m3 (vs. OSHA 10mg/m3 limit)
Cross-Contamination Risk: <0.01ppm material carryover
Seal Integrity: >98kPa burst pressure (ASTM F2054)
| Component | Innovation | Performance | Industry Standard |
|---|---|---|---|
| Load Cells | Temperature-Compensated Strain Gauges | ±0.15% Accuracy | ±0.5% |
| Flow Control | AI-Predictive Material Bridging Prevention | 0% Flow Stoppage | 3-8 Stoppages/Hr |
| Residual Control | Pneumatic Scraper + Vacuum Assist | <0.3g Residual Material | 2-5g |
| Parameter | TS-2010 (Standard) | TS-2020F (Food-Grade) | TS-2030X (ATEX) |
|---|---|---|---|
| Bag Capacity | 5-50kg (±0.5%) | 5-50kg (±0.3%) | 5-50kg (±0.6%) |
| Throughput | 45 Bags/Hour | 40 Bags/Hour | 38 Bags/Hour |
| Material Compatibility | Grains ? Fertilizers ? Polymers ? Minerals ? Animal Feed | Food Powders ? Pharma Ingredients | Explosive Dusts ? Chemicals |
| Filling Accuracy | ±0.5% Gravimetric | ±0.3% | ±0.6% |
| Sealing Methods | Heat Seal ? Stitch ? Adhesive Tape ? Zipper | Ultrasonic Seal | Induction Bonding |
| Bag Types | Woven PP ? Paper ? Laminated ? FIBC Liners | Same + Biodegradable | Same + Static-Dissipative |
| Dust Control | -30Pa Hood + Cyclonic Separation | ISO Class 5 Enclosure | Explosion-Proof Filter |
| Material Contact | 304 SS (Ra<0.8μm) | 316L EP (Ra<0.4μm) | Hastelloy C276 |
| Positioning Accuracy | ±0.5mm (Laser Guided) | ±0.3mm (Vision System) | ±1.0mm (Robotic Arm) |
| Changeover Time | <90s (Tool-Free) | <75s | <110s |
| Power | 480V/60Hz, 12kW | 480V/60Hz, 10kW | 24VDC Ex ia |
| Certifications | CE, ISO 9001 | FDA 21 CFR 117 ? HACCP | ATEX Zone 22 |
Food & Agriculture
| Feature | Technology | Certification |
|---|---|---|
| Allergen Control | Color-Coded Change Parts | SQF Level 3 |
| Moisture Barrier | N? Flushing (O?<0.1%) | ISO 22000 |
| Cleanability | CIP/SIP Ready (121°C/30min) | EHEDG EL Class I |
Chemicals & Minerals
Explosion Safety:
Static Control:
| Component | Specification |
|---|---|
| Conductive Path | Surface Resistivity <10? Ω |
| Ionized Air Curtain | 10? ions/cm3 Output |
Pharmaceuticals
| Compliance | Technical Solution |
|---|---|
| cGMP | 316L EP Full Encapsulation |
| Data Integrity | 21 CFR Part 11 Audit Trail |
| Material Traceability | RFID Bag Tracking |
**15" HMI with BagOS?**
AI-Driven Features:
Anomaly Detection:
| Defect | Action |
|---|---|
| Bag Wrinkle >5mm | Seal Pressure Adjustment |
| Material Overflow | Instant Flow Cutoff |
Preventive Maintenance:
| Component | Alert Threshold |
|---|---|
| Heater Degradation | Temp Variance >5°C |
| Conveyor Wear | Vibration >4.5mm/s |
1. Automatic Bag Placement → 2. Collar Engagement & Dust Hood Seal → 3. High-Speed Filling (±0.5%) → 4. Residual Material Purge → 5. Multi-Stage Sealing (Heat/Stitch/Adhesive) → 6. 100% Vision Inspection → 7. Palletizing
Cycle Time: 80 seconds/bag
Cargill Grain Processing Facility:
"After 6 months using TS-2010:
Output: 22 → 45 Bags/Hour (+105%)
Spill Reduction: 1.5kg/day → 0.02kg/day
Seal Failure Rate: 3.2% → 0.05%
ROI Period: 5.8 months"
Precision Engineering Mastery
? Unmatched Sealing Flexibility: | **Sealing Type** | **Speed** | **Strength** | |--------------------|-----------|--------------| | Heat Seal | 8 sec | >35N/15mm| | Stitching | 12 sec| >50N | | Adhesive Tape | 6 sec | >25N/25mm| ? Zero-Contamination Architecture: 1. Isolated Material Zones 2. H14 HEPA Filtration (EN 1822) 3. UV-C Sterilization Tunnel ? Industrial Durability: - Tungsten Carbide Scraper Blades - IP69K Washdown Protection - 100,000-Hour MTBF
