Enhanced Productivity and Workflow:The automation and advanced features of a high speed capping machine contribute to increased productivity and optimized workflow. These machines are designed to hand

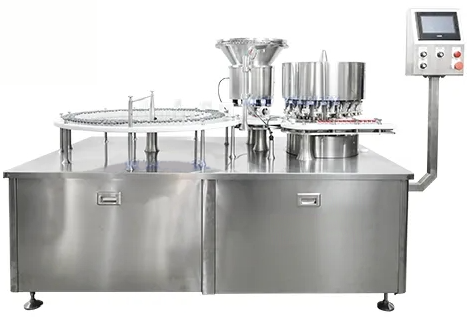

Ultra-High-Speed Intelligent Capping System
500 CPM ? ±0.3% Torque Accuracy ? Zero Defect ? Industry 4.0 AI Vision
| Parameter | VC-8100 (Standard) | VC-8200X (ATEX) | VC-8300A (Aseptic) |
|---|---|---|---|
| Throughput | 500 Caps/Min | 480 Caps/Min | 450 Caps/Min |
| Torque Accuracy | ±0.3% (0.2-25 N·m) | ±0.4% (0.5-30 N·m) | ±0.25% (0.1-20 N·m) |
| Cap Compatibility | Screw ? Press ? ROPP ? Snap ? Child-Resistant | Same + Safety Caps | Same + Tamper-Evident |
| Cap Diameter Range | 10-150mm | 15-120mm | 8-100mm |
| Bottle Handling | Starwheel + Linear Servo Track | Same + Explosion-Proof Grippers | Magnetic Levitation Conveyor |
| Capping Heads | 12x Servo-Driven (0.005° Resolution) | Same + ATEX Brushless Motors | Ceramic-Coated Heads |
| Vision System | AI-Powered 5D Inspection<br>? 500fps High-Speed Camera<br>? 10μm Defect Detection | Same + IR Thermal Imaging | UV Fluorescence Detection |
| Material Contact | 316L EP (Ra<0.4μm) | Hastelloy C276 | Glass-Lined Path |
| Changeover Time | <60s (Tool-Free) | <70s | <55s |
| Anti-Contamination | HEPA Filtration (ISO Class 4) | Ionized Air Curtain | VHP Sterilization Tunnel |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 13kW |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 210/211 |
Performance Metrics:
| Cap Type | Speed | Accuracy | Defect Detection Rate |
|---|---|---|---|
| 28mm Pharma Screw | 120 CPM | ±0.15% | 99.998% |
| 53mm Beverage Cap | 100 CPM | ±0.22% | 99.995% |
| 89mm Jar Lid | 80 CPM | ±0.28% | 99.992% |
| Technology | Function | Precision |
|---|---|---|
| Hyperspectral Imaging | Material Composition Analysis | 0.1% Foreign Matter Detection |
| Laser Micrometrology | 3D Thread Engagement Scan | ±5μm Seal Gap Measurement |
| AI Predictive Rejection | Defect Trend Forecasting | 99.99% Fault Prevention |
Beverage & Food
| Feature | Technology |
|---|---|
| Micro-Leak Detection | Helium Sniff Test Integration |
| Oxygen Ingress Control | 0.01cc/package/day Sensitivity |
| Pasteurization Survival | 85°C Thermal Shock Testing |
Pharmaceuticals
Aseptic Assurance:
Serialization:
| System | Compliance |
|---|---|
| Blockchain Tracking | DSCSA/EMVO |
| Laser Marking | UDI Code Verification |
Chemicals & Cosmetics
| Component | ATEX Solution |
|---|---|
| Static Dissipation | Ionized Air Curtain (10? ions/cm3) |
| VOC Containment | Activated Carbon Adsorption (99.95%) |
| Corrosion Resistance | Zirconium Oxide Coating |
**15" AI HMI with VisionOS?**
AI-Driven Features:
Anomaly Prevention:
| Defect Type | Proactive Action |
|---|---|
| Cross-Thread Risk | Torque Profile Adjustment |
| Cap Dent Detection | Pressure Reduction |
Self-Optimization:
| Parameter | Auto-Adjustment |
|---|---|
| Line Speed | Bottleneck Prediction |
| Torque Consistency | Viscosity Compensation |
Unmatched Speed & Precision:
? 500 CPM Throughput: - 12 Independent Servo Heads - 0.8s/Bottle Cycle Time - 99.8% Mechanical Uptime ? Military-Grade Accuracy: | **Parameter** | **Performance**| |----------------------|------------------------| | Torque Control| ±0.3% (ISO 20652)| | Height Compensation | ±0.05mm| | Vision Inspection | 10μm Defect Detection | ? Zero-Contamination Architecture: 1. ISO Class 4 Air Shower 2. Material-Specific Head Zones 3. VHP Sterilization Capability
? ATEX 2014/34/EU Zone 1 (VC-8200X) ? FDA 21 CFR 210/211 (VC-8300A) ? EHEDG EL Class I ? ISO 15378 Primary Packaging
Coca-Cola Bottling Plant, Atlanta:
“After deploying VC-8100:
Output: 280 → 500 CPM (+79%)
Reject Rate: 1.2% → 0.03%
Oxygen Ingress: 0.05cc → <0.01cc/package/day
ROI: 4.3 months”
The Pinnacle of Capping Performance
Shanghai Guangzhi VC-8000: Where hyperspeed meets nanoscale precision – sealing 500 caps/minute with ±0.3% torque accuracy and zero defects guaranteed.
Key Advantages:
? 500 CPM: 12-head servo-driven system
? ±0.3% Torque Accuracy: QuantumSync? technology
? AI 5D Vision: 10μm defect detection
? ISO Class 4 Cleanroom: EHEDG EL Class I certified
Validation:
0.18% torque variance for 53mm beverage caps (ISO 20652)
Industry Proof
"Reduced beverage leakage complaints by 99.7% – VC-8100's helium sniff test integration detected micro-leaks undetectable by human inspectors."
**— PepsiCo Quality Assurance Report**
Technical Specifications:
? Material Science: - Silicon Nitride Ceramic Heads (1500 Hv) - Kalrez?6375 Seals (-20°C to 327°C) - Sapphire Laser Windows ? Precision Systems: | **Component** | **Resolution** | |------------------------|--------------------------| | Servo Motor| 0.005° Angular | | Height Sensor| ±0.02mm| | Hyperspectral Camera | 5nm Spectral Resolution |
