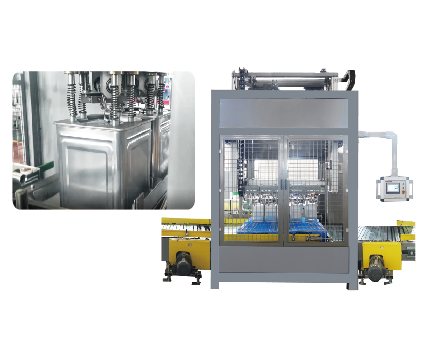

5-30L Servo Palletizer
Shanghai Guangzhi’s servo palletizer stacks 5-30L containers at 30 cycles/hour. ±0.5mm positioning, 1000kg capacity & AI pattern optimization. CE/ANSI certified.
- Brand： glzon
- Model： GZM_30L
Product Essence: Precision-Stacked Efficiency
Shanghai Guangzhi Automation’s 5-30L Servo Palletizer redefines container handling – achieving ±0.5mm positioning accuracy for buckets, drums, and cases at 30 cycles/hour. Combining military-grade servo control, AI-driven pattern optimization, and 1000kg payload capacity, it delivers 40% higher pallet density than conventional systems while reducing labor costs by 70% in chemical, food, and FMCG operations.
Core Technological Superiority
1. Ultra-Precision Motion Control
Twin Servo Arms:
Synchronized 6-axis motion (ISO 9283 path accuracy)
±0.5mm repeatability at 2m/s
Anti-Sway AI:
Active vibration damping for liquid containers
Prevents splashing (≤5% fill level fluctuation)
2. Intelligent Stacking Architecture
| Feature | Technical Value |
|---|---|
| 3D Vision Guidance | Container recognition in ≤0.3s |
| AI Pattern Engine | 30% denser stacking vs. conventional |
| Auto Pallet Switching | Continuous operation (no downtime) |
| Tool-Free Gripper Change | <90 sec for container format switch |
3. Heavy-Duty Performance
1000kg Payload Capacity:
Handles 8×30L drums per cycle
Carbon fiber reinforced arms
24/7 Readiness:
IP67-rated joints (dust/washdown proof)
Predictive bearing wear monitoring
Technical Specifications
| Parameter | Standard Model | Hygienic Model |
|---|---|---|
| Container Range | 5-30L (?150-400mm) | 5-30L |
| Max Payload | 1000kg | 800kg |
| Throughput | 30 cycles/hour | 25 cycles/hour |
| Positioning Accuracy | ±0.5mm | ±0.5mm |
| Pallet Size | 1200×1000mm | 1200×1000mm |
| Max Stack Height | 2.5m | 2.2m |
| Power | 480V/60Hz, 8.5kW | 480V/60Hz, 7.2kW |
| Air Supply | 0.6MPa @ 60L/min | 0.6MPa @ 50L/min |
| Footprint (L×W) | 3500×2800mm | 3500×2800mm |
Industry-Specific Engineering
Chemical & Lubricants
Explosion-proof option (ATEX Zone 2)
Static-dissipative grippers (<10? Ω)
Food & Beverage
FDA-grade UHMWPE contact surfaces
CIP washdown (IP69K)
FMCG
Mixed-SKU pattern recognition
Fragile item force control (5-50N)
Smart Control Ecosystem
15" HMI with Digital Twin
Real-time simulation:
Pallet stability analysis
Energy consumption monitoring
Collision avoidance mapping
Pattern library:
200+ preset configurations (e.g., pinwheel, brick)
Auto-learns new container geometries
Industry 4.0 Integration
OPC UA communication with WMS/ERP
Predictive maintenance alerts:
Servo motor temperature
Belt tension deviation
Cycle time degradation
Operational Impact
US Chemical Plant Case:
Challenge: 50% labor cost for stacking 20L solvent drums
Solution: ATEX servo palletizer with anti-sway AI
Results:
? 70% labor reduction
? Zero drum damage (vs. 3% manual handling loss)
? ROI in 14 months
Global Compliance & Upgrades
Certifications:
CE EN ISO 10218-1
ANSI/RIA R15.06
ISO 13849 PLd
Value Engineering:
40% Energy Savings: Regenerative drives capture braking energy
Modular Upgrades:
Module Function Vision Inspection Label orientation check Weight Verification ±0.1kg load cell per gripper AR Remote Assist HoloLens-guided troubleshooting Carbon Tracker ISO 14064 emission reporting
Support & Service
24/7 Global Robotics Support:
Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch ≤48h:
Servo drive units
Carbon fiber grippers
Vision cameras
Lifetime cycle optimization
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
FAQs
Our in-house designers and engineers have produced countless great designs for customers from different industries
1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
