CAS CPA loadcells (500kg-5tf)CAS load cell, CPA platform scale load cell, pancake load cell models: CPA-500L, CPA-1, CAP-2, CPA-3, CPA-5.Low-profileIntegrated loading baseLow-deck high capacity scale
CAS CPA loadcells (500kg-5tf)

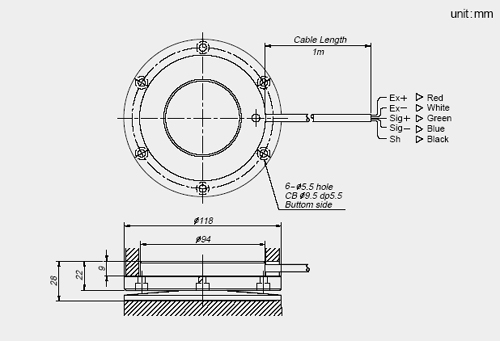

CAS load cell, CPA platform scale load cell, pancake load cell models: CPA-500L, CPA-1, CAP-2, CPA-3, CPA-5.
Low-profile
Integrated loading base
Low-deck high capacity scale applications
| Max. capacity | 500kgf, 1, 1.5, 2, 3, 5tf |
| Rated output Zoro balance | 1.7 ± 0.17mV/V 0 ± 0.016mV/V |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | 0.14%R.O. 0.03%R.O. 0.03%R.O. 0.03%R.O./10℃ 0.05%R.O./10℃ |
| Excitation Recommended Maximum Resistance Input Output Insulation | 10V 15V 760 ± 7Ω 700 ± 7Ω ＞2,000MΩ |
| Compensated temperature range Operating temperature range | -10 to +40℃ -40 to +70℃ |
