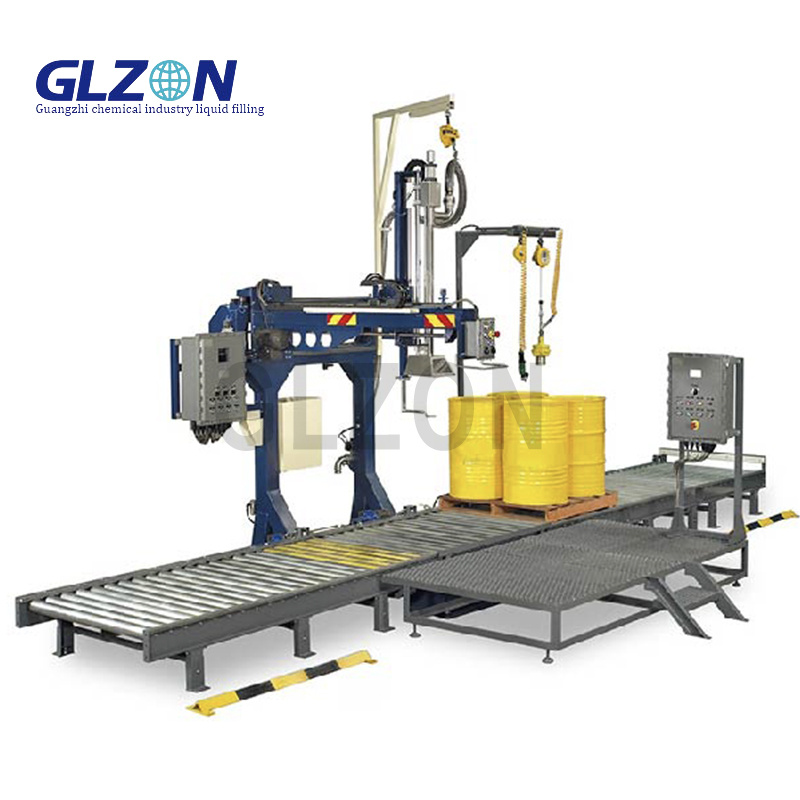

220L Chemical Drum Filling Machine with Corrosion-Resistant Structure
Shanghai Guangzhi’s 220L drum filler handles HCl/H?SO?/solvents with Hastelloy structure. ±0.1% accuracy, vapor recovery & SIL3 safety. 15 drums/hour.
- Brand： glzon
- Model： GZM_200L
Product Essence: Defying Corrosion, Ensuring Precision
Shanghai Guangzhi Automation’s 220L Chemical Drum Filler masters the most aggressive chemicals – hydrochloric acid, sulfuric acid, ketones, and chlorinated solvents – with a Hastelloy C276/PVDF structural core. Engineered for ATEX Zone 1 environments, it delivers ±0.1% filling accuracy at 15 drums/hour while eliminating emissions through closed-loop vapor recovery and SIL3-rated safety controls.
Core Anti-Corrosion Technology
1. Military-Grade Material Science
| Component | Material | Chemical Resistance |
|---|---|---|
| Contact Surfaces | Hastelloy C276 | HCl ≤37%, H?SO? ≤98%, Cl? (wet) |
| Seals & Gaskets | Kalrez? 6375 + PTFE Encapsulated | All organic solvents, ozone |
| Frame Armor | FRP-PVDF Composite | UV/chemical splash protection |
2. Hazard-Controlled Filling
Negative-Pressure Loading:
Sealed drum adapter with dual O-rings
Vapor recovery efficiency ≥99.97% (EPA Method 21)
Static Dissipation:
Conductive fill heads (<10? Ω)
Grounding verification pre-fill
Inerting System:
Nitrogen purge (O? <0.5%)
Pressure-regulated blanket
3. Extreme Environment Resilience
ATEX Zone 1 Certified:
Ex d IIC T4 pressurized panels
Fiber-optic intrinsic safety circuits
IP66/IP67 Rating:
Submersible electronics (temporary immersion)
Salt spray resistance (ISO 9227 NSS 1000h)
Technical Specifications
| Parameter | Specification |
|---|---|
| Filling Range | 50-220L (±0.1%) |
| Flow Rate | 100-200 L/min |
| Accuracy | ±0.1% (Coriolis mass flow) |
| Drum Compatibility | 220L (?585mm) steel/PE |
| Viscosity Range | 0.5-50,000 cP |
| Power Supply | 380V/50Hz, 7.2kW (24VDC ATEX) |
| Vapor Recovery | ≥99.97% (TA Luft Standard) |
| Safety Integrity | SIL3 (IEC 61511) |
| Footprint (L×W×H) | 3200×1800×2500mm |
Chemical-Specific Engineering
| Chemical | Specialized Feature |
|---|---|
| 37% HCl | Electro-polished Hastelloy C22 nozzles |
| 98% H?SO? | Borosilicate glass level sensors |
| Acetone/Toluene | Explosion-proof peristaltic pumps |
| Sodium Hypochlorite | Titanium alloy flow meters |
Smart Safety Ecosystem
Triple-Redundant Protection
Leak Detection:
Laser vapor sensors (≥1ppm alarm)
Floor moisture sensors
Emergency Response:
Pressure loss
Grounding fault
O? >1%
Auto shutoff on:
Data Forensics:
10-year encrypted audit trail
Blockchain incident logging
Operational Impact
German Chemical Plant Case:
Challenge: Monthly nozzle failures filling 70% HNO?
Solution: Hastelloy C276 filler with Kalrez seals
Results:
? Zero component failures in 24 months
? 99.98% vapor capture
? ROI in 11 months
Global Compliance & Upgrades
Certifications:
ATEX 2014/34/EU (Zone 1)
PED 2014/68/EU Category IV
ASME BPE-2022 (Bio-Pharma Option)
NACE MR0175 (Sulfide Stress Cracking)
Critical Upgrades:
| Module | Function |
|---|---|
| Robotic Drum Handler | Auto-lid placement & sealing |
| Cryogenic Cooling | For low-boiling solvents (-40°C) |
| Aseptic Barrier | ISO Class 5 cleanroom compatibility |
| AR Maintenance | HoloLens-guided repairs |
Support & Service
24/7 Hazardous Response Team
Global Hotline: Satellite-connected technical support
Critical Spares Program:
Hastelloy nozzles/seals
Ex-proof sensors
Vapor membranes
Delivery ≤48h from Shanghai/Houston/Rotterdam hubs
Digital Twin Integration
Real-time corrosion monitoring:
Electrochemical noise sensors
Wall thickness ultrasonics
Predictive replacement alerts
APPLICABLE BARREL TYPE
