Fully automatic drum filler for inkjet inks. ±0.15% weighing accuracy, nitrogen blanketing & helical mixing. 12 drums/hour. CIP/SIP ready. REACH/FDA compliant.

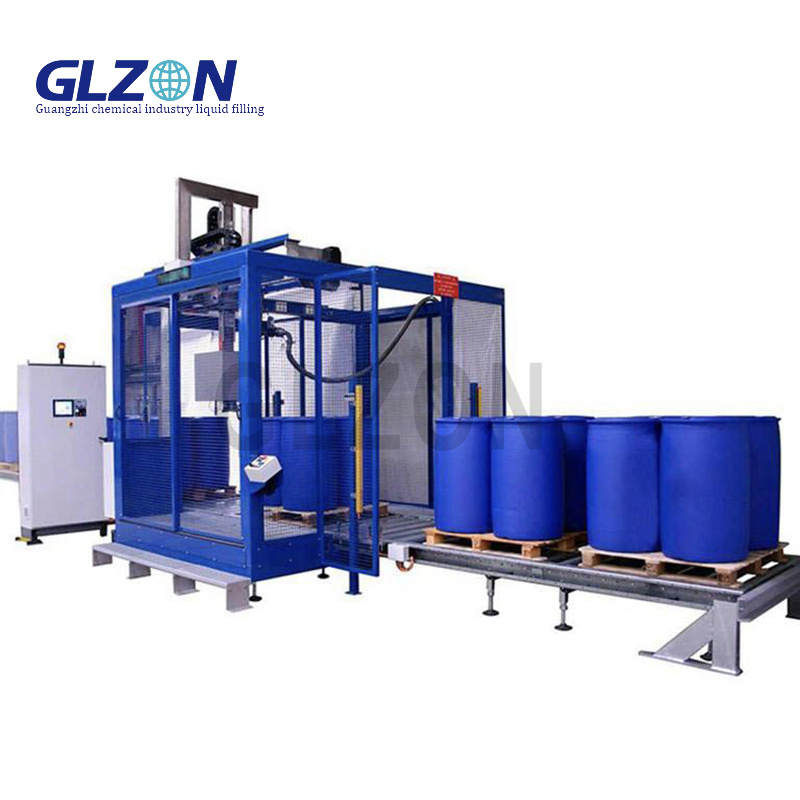

Shanghai Guangzhi Automation’s Fully Automatic Drum Filler delivers ±0.15% gravimetric accuracy for filling 200-1000L drums with pigment-based inkjet inks. Featuring dual-helical anti-settling agitation, O?<50ppm nitrogen blanketing, and self-learning viscosity control, it achieves 12 drums/hour while eliminating pigment stratification, oxidation, and batch variation – critical for CMYK and specialty digital inks.
1. Dynamic Pigment Dispersion
| System | Technical Advantage |
|---|---|
| Dual Helical Agitator | 360° wall scraping (5-20 RPM) |
| Low-Shear Recirculation | Shear rate <500 s?1 (prevents particle damage) |
| Pulsed Filling | Density uniformity control (±0.5%) |
| Real-Time Viscosity Compensation | ±100 cP adjustment (5-20,000 cP range) |
2. Oxygen-Free Precision
Triple-Stage Nitrogen Protection:
Drum pre-purge (O?<100ppm)
Submerged filling tube
Headspace blanketing (O?<50ppm)
Color Integrity Assurance:
Prevents oxidation-induced ΔE>0.5 color shift
UV-blocking drum option
3. Smart Weighing Ecosystem
Multi-Sensor Load Array:
4× OIML R60 Class 0.2 load cells (±0.05%)
Auto-tare for drum weight variations (±1kg)
Loss-Free Transfer:
PTFE-lined retractable nozzles
Residual ink ≤15ml per drum
| Parameter | Standard Model | Aseptic Model |
|---|---|---|
| Filling Range | 200-1000L (±0.15%) | 200-1000L (±0.2%) |
| Viscosity Range | 5-20,000 cP | 5-15,000 cP |
| Throughput | 12 drums/hour | 10 drums/hour |
| Agitation Power | 3.7kW (variable torque) | 3.7kW |
| N? Consumption | 20 L/min @ 4bar | 25 L/min @ 4bar |
| Power | 380V/50Hz, 11kW | 380V/50Hz, 11kW |
| CIP/SIP Cycle | <10 min (alkali/solvent/steam) | <12 min (pharma-grade) |
| Footprint (L×W×H) | 3500×2200×2800mm | 3800×2200×3000mm |
| Ink Type | Guangzhi Solution |
|---|---|
| Aqueous Pigment | Low-foam filling algorithm |
| UV-Curable Inks | Amber light shielding (λ<420nm) |
| Solvent Inks | ATEX Zone 2 option + vapor recovery |
| Latex Inks | Temperature control (25±1°C) |
10" HMI with Ink Formulation Cloud
Self-Optimizing Recipes:
200+ preset profiles (CMYK/spot colors)
Auto-adjusts for pigment density variations
Real-Time Analytics:
ΔE color shift monitoring
O? ppm trend analysis
Viscosity-shear rate mapping
Predictive Maintenance:
Seal wear index
Agitator bearing health
Industry 4.0 Integration
OPC UA/Modbus TCP to ERP (SAP integration)
Blockchain batch tracing:
Pigment lot → drum serial number
Remote firmware updates
Global Digital Press Manufacturer Case:
Reduced color consistency complaints by 92%
Achieved ±0.12% fill accuracy for 1000L CMYK drums
ROI in 9 months via waste reduction
Certifications:
FDA 21 CFR 175.300 (indirect food contact)
REACH SVHC compliance
ISO 12647-7 color standards
CE EN 60204-1
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Spectrophotometer | ΔE≤0.3 real-time color monitoring |
| Microfiltration Kit | 5μm particle removal pre-filling |
| Robotic Drum Handling | Auto lid placement & torque sealing |
| AR Quality Inspector | HoloLens-assisted batch audit |
24/7 Ink Sector Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Helical agitators
Nitrogen flow controllers
Precision load cells
Color Consistency Service:
Shear rate optimization
Dispersion stability testing
APPLICABLE BARREL TYPE
