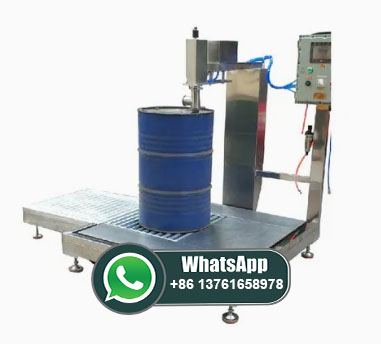

200kg Chemical Raw Materials Fully Automatic Filling Machine

2025-05-12 16:19:36 glzon

Fully Automatic Filling Machine

Basic Info.

Type
Weighing-type Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Barrel Form
Pail, Can, Bottle, etc.
Application
Food, Beverages, Daily Necessities, Chemicals
Suitable Material
Coatings, Inks, Paints, Asphalt, Glue, Lubricants
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Transport Package
Wooden Cases
Specification
1225*660*1180
Trademark
GLZON
Origin
Shanghai, China

Product Description

Automatic Meter Filling Line for Filling 200L Drum Liquid/Glacial Acetic Acid/Epoxy Resin
200kg Chemical Raw Materials Fully Automatic Filling Machine
Product Description


Introduction

Liquid filling line is a highly automated packaging equipment, whose main function is to automatically fill liquid materials into predetermined weights. The liquid filling machine can effectively prevent material overflow during the filling process, effectively prevent material pollution to the environment, and provide effective labor protection for operators. Its system works stably and reliably, with simple operation and precise filling. The filling line mainly consists of a filling gun device, PLC system control part, weighing system, filling rack, conveying equipment, etc.

200kg Chemical Raw Materials Fully Automatic Filling Machine
200kg Chemical Raw Materials Fully Automatic Filling Machine

Features
1.For the filling of square barrels and drums below 100kg, the system adopts programmable PLC control, with full Chinese guid- ance and easy operation;
2.The filling head extends into the barrel mouth and automatical- ly exits when filling is completed. If the filling head is not aligned with the barrel mouth, it will automatically return;
3.The filling gun is made with integral technology to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean;
4.The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications;
5.Equipped with a large and small ball width group and a double-stage filling gun, the four-stage filling design of large, medium, small and trace quantities makes filling more accurate;
6.Filling is prohibited without a bucket on the weighing platform, and differential pressure zero-time bucket collision protection is provided;
7.Net weight/gross weight (automatic tare for each barrel) Two filling methods are automatically selected;
8.One-click operation, easy to use; multiple windows display filling volume, number of barrels, cumulative volume and other information;
9.There is a signal indicator light for real-time display, and an automatic alarm if the deviation is exceeded;
10.It has good stability,reduces losses,saves costs,improves operating efficiency and reduces manual operation pressure.
Product Parameters
200kg Chemical Raw Materials Fully Automatic Filling Machine
Product Parameters
Model
GZM-200AUTO-2PT
Filling range100-200kg
PowerAC220V±10%50hz
Air source0.5mpa
Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling accuracy0.02%
Speed(can/min)1-2 barrels (1000L)
Filling station2
Materialsus304/316
Installation Instructions
Main structure and working principle

1.Computer quantitative filling machine has feeding system, weighing system frame pneumatic control control system without power raceway and so on.

2.Feeding mode: the requirement of continuous and stable feeding (feeding pump pressurized feeding) feeding mechanism by solenoid valve through the cylinder to perform fast and slow feeding.

3.Filling method: ordinary conventional filling and lifting and diving filling (according to the needs of the order to choose).

4.The weighing platform is equipped with unpowered roller and frame support and filling system pneumatic control system: control fast and slow feeding valve in the process of using the weighing platform is not allowed to be subjected to additional external forces.
200kg Chemical Raw Materials Fully Automatic Filling Machine200kg Chemical Raw Materials Fully Automatic Filling Machine
Working process:

@The operator places the drum on the filler

@The operator aligns the nozzle to the drum

@The operator presses the button of " filling orientation" at first, then presses the button of "start filling", filling nozzles lowing down,start filling automatically

@When it comes to the weight set, automatically stops filling and nozzle out of the drum

@The operator push out the drum

Company Profile

200kg Chemical Raw Materials Fully Automatic Filling Machine
Shanghai Guangzhi Automation Equipment Co., Ltd. is a professional production and sales of packaging machine, filling machine factory, our company is located in Shanghai Songjiang Industrial Zone, covers an area of 5000 square meters, adjacent to the G60 science and innovation corridor, has rich industry experience, excellent human resources, excellent technical ability.
Since its establishment in 2010, our company has been committed to R & D, design, production to make customers more satisfied with the products, to provide quality after-sales service system, in the continuous efforts of all staff, our equipment is not only in the country chemical, construction and other industries have made achievements, but also exported to 49 countries around the world, and set up agents in South America, East Asia, Africa, more with the world.

Contact us

Shanghai Guangzhi Antomation Equipment Co.Ltd

Postcode:201612

No.409,Xintuo Road,Indusrial Zone,Songjiang District,Shanghai

Our Advantages

Why choose us

1. Packaging solution.
We provide professional packaging and logistic service for your option. With plenty of experience and carefully treatment, we make sure the machinery delivery to you is good useful.

2. Pre-sale Service.
Pre-sale service will provide by our sales engineers and electrical engineers. offering complete bundle of packaging solutions and professional rationalization proposals and pre-sale testes.

3. After-sale service.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts not included)under warranty period(one-year warranty )as well as after-sale service of low cost.

Free training course will be given to your technician at our factory site in Shanghai China.

200kg Chemical Raw Materials Fully Automatic Filling Machine
